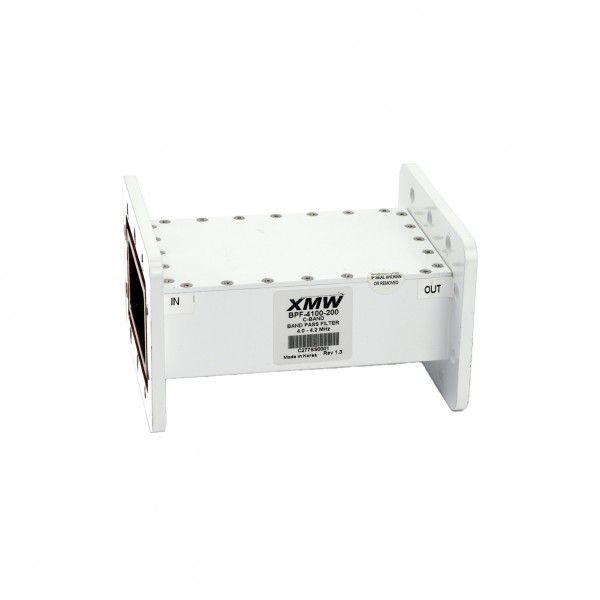

C-band BPF
| Part number | BPF-3950-500 BPF-3912.5-575 BPF-3977-446 BPF-4000-400 BPF-4050-300 BPF-4100-200 |
|---|---|
| Frequency | 3.7 - 4.2 GHz 3.625 - 4.2 GHz 3.754 - 4.2 GHz 3.8 - 4.2 GHz 3.9 - 4.2 GHz 4.0 - 4.2 GHz |
| Bandwidth | 500 MHz 575 MHz 446 MHz 400 MHz 300 MHz 200 MHz |
| In-band IL | 0.5dB 0.5dB 0.5dB 0.5dB 0.6dB 0.8dB |
| Rejection | Refer to spec sheet |
| IL @10MHz | N/A |
| In / Out | CPR229 |
BPF-CF-BW
(BPF-C-1 ~ BPF-C-6)
C-band BPF
(BPF-C-1 ~ BPF-C-6)
C-band BPF
첨부파일
- BPF-CF-BWBPF-C-1 ~ BPF-C-6-C-band BPF.pdf (258.5K) 4회 다운로드 | DATE : 2025-10-03 11:39:02
