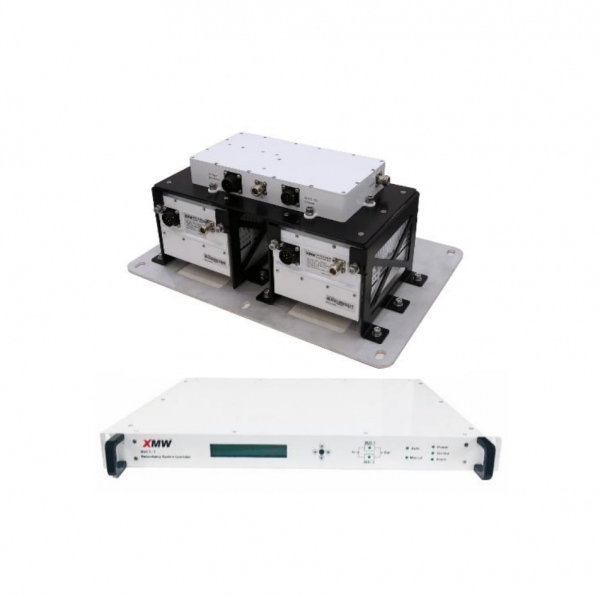

BUC 1:1 Ka-band 20W
| Part number | RDT2920 RDT29E20 RDT3020 |
|---|---|
| Configuration | BUC 1:1 Ka-band 20W |
| Input Frequency | 950 - 1450 MHz 1000 - 2000 MHz 1000 - 2000 MHz |
| LO Frequency | 28.55 GHz 28.0 GHz 29.0 GHz |
| Output Frequency | 29.5 - 30.0 GHz 29.0 - 30.0 GHz 30.0 - 31.0 GHz |
| Output Power | 43dBm @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 70dB |
| Power | +48VDC 250W |
RDT2920,
RDT29E20,
RDT3020
RDT29E20,
RDT3020
첨부파일
- Ka-band 20W BUC 1-1 System RDT2920RDT29E20, RDT3020_V1.4_2502.pdf (602.0K) 425회 다운로드 | DATE : 2025-02-21 11:37:30
